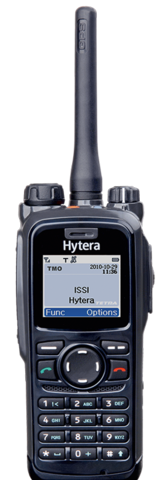

PT 580-H PLUS UL913 TEKNİK ÖZELLİKLERİ
|
General Specifications |
|
|
Frequency Bands |
380-430MHz; 410-470MHz; 806-870MHz |
|
Dimensions (H×W×D) |
127.5 × 54.5 × 46mm |
|
Weight |
400g (with battery and antenna) |
|
Operating Voltage |
7.4V |
|
Battery |
2400mAh Li-Ion battery |
|
Battery Life (5/5/90 Duty Cycle) |
>20 hours |
|
User Interface |
|
|
LCD Color Display |
1.8inch, 160x128pixels, 65536colors |
|
Talk Groups - TMO |
3000 |
|
Talk Groups - DMO |
2000 |
|
Phonebook |
1000 |
|
Missed Calls |
20 |
|
Received Calls |
20 |
|
Dialed Calls |
20 |
|
Inbox |
400 |
|
Outbox |
50 |
|
Drafts |
50 |
|
Folder |
TMO:200 floders, 200 groups per floder DMO:50 floders, 200 groups per floder |
|
Environmental |
|
|
Humidity |
ETS 300 019 (95%) |
|
Water and Dust Protection |
IEC60529 IP67 |
|
Drop, Shock & Vibration |
MIL-STD-810 F/G |
|
RF Specifications |
|
|
RF Channel Bandwidth |
25KHz |
|
RF Power Output |
1W |
|
RF Power Level Accuracy |
±2dB |
|
Receiver Class |
ETSI EN 392-2/396-2 Class A |
|
RX Static Sensitivity |
-114dBm(typical-116dBm) |
|
RX Dynamic Sensitivity |
-105dBm(typical-106dBm) |
|
Maximum Audio Power Output |
1W |
